SCR Power Controllers

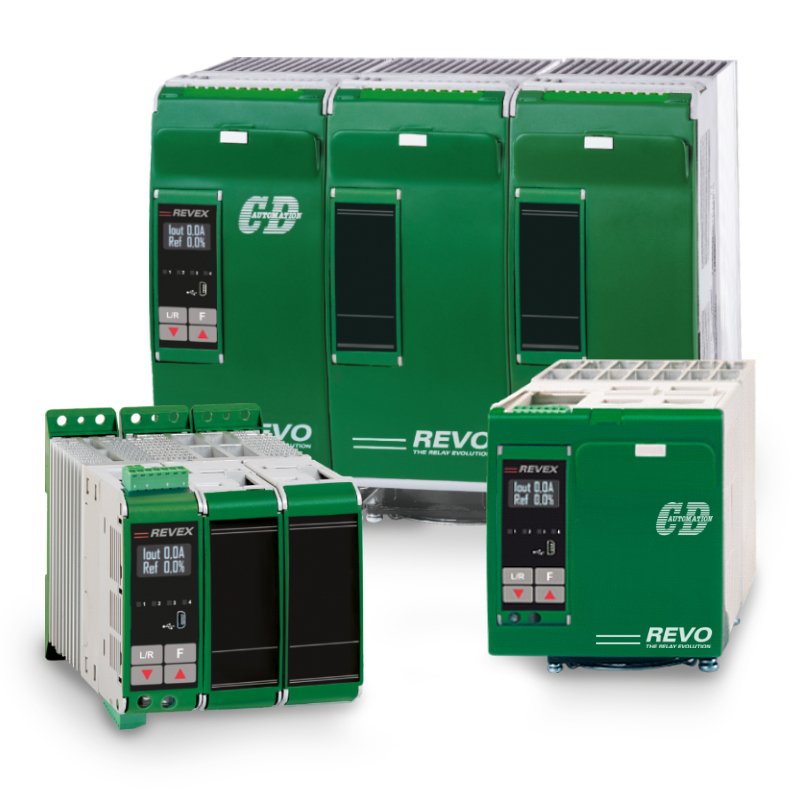

REVEX 3PH – The Power Controller On Demand

A versatile industrial power controller designed for precise regulation of resistive and infrared heating loads. It supports multiple input signals (4-20mA, 0-10V, SSR, and Modbus), advanced voltage/current/power control modes, Burst Firing and Zero Crossing operation, and RS485 Modbus communication. The integrated USB port enables safe and easy configuration, while dual current limiting enhances system protection. An optional Heater Break (HB) Alarm provides early detection of partial or total load failure and thyristor short circuits. Fully compliant with CE, EMC, and EAC standards for reliable industrial performance.

Specification

Load type: Normal Resistance, Infrared Short, Medium and Long Waveform

Inputs: 4:20mA, 0:10V, SSR and ModBus as std.

Firing mode: Burst Firing, Zero Crossing

Control Mode: Voltage, Current and Power or V2 and I2 with additional Transfer to VxI

Communication: RS485 port. RTU Modbus® Protocol
