SCR Power Controllers

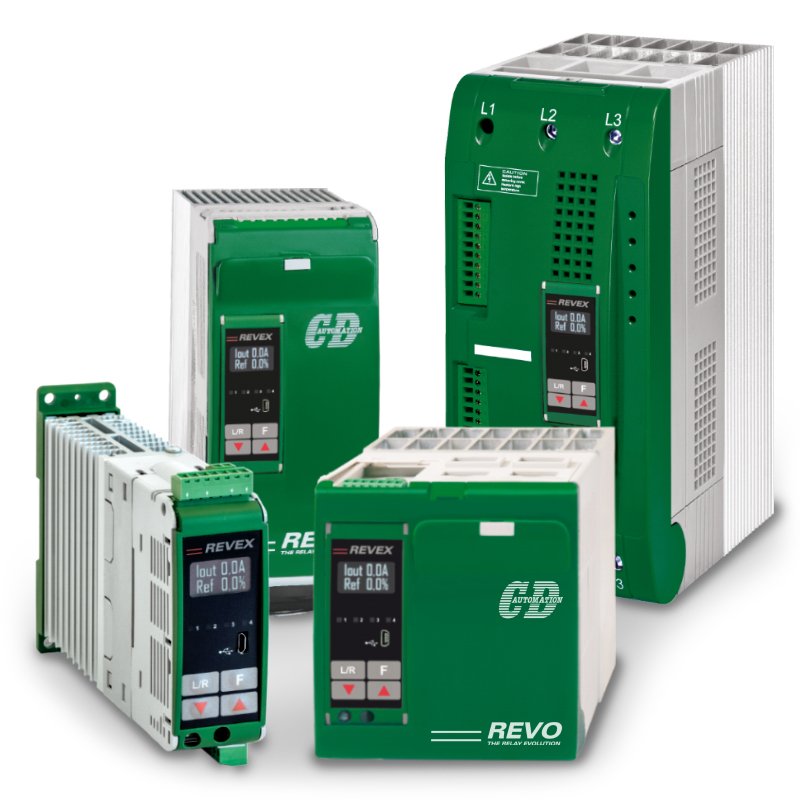

REVEX 1PH – The Power Controller On Demand

REVEX 1PH is a compact and versatile single-phase power controller designed for precise control of resistive, infrared, transformer, and SiC heating loads. It supports multiple control inputs (4-20mA, 0-10V, SSR, and Modbus), advanced firing modes, voltage/current/power control, RS485 Modbus communication, dual current limiting, and USB configuration. The unit is CE, EMC, and EAC compliant, making it ideal for industrial heating and process control applications.

Specification

Load type: Normal Resistance, Infrared Short, Medium and Long, Transformer Primary, Cold resistance and SiC elements

Inputs: 4:20mA, 0:10V, SSR and ModBus as std.

Firing mode: Half Cycle, Single Cycle, Burst Firing, Delayed Triggering, Phase Angle with or without Soft Start

Control Mode: Voltage, Current and Power or V2 and I2 with additional Transfer to VxI

Communication: RS485 port. RTU Modbus® Protocol
