Online Water Quality Analysers Instruments

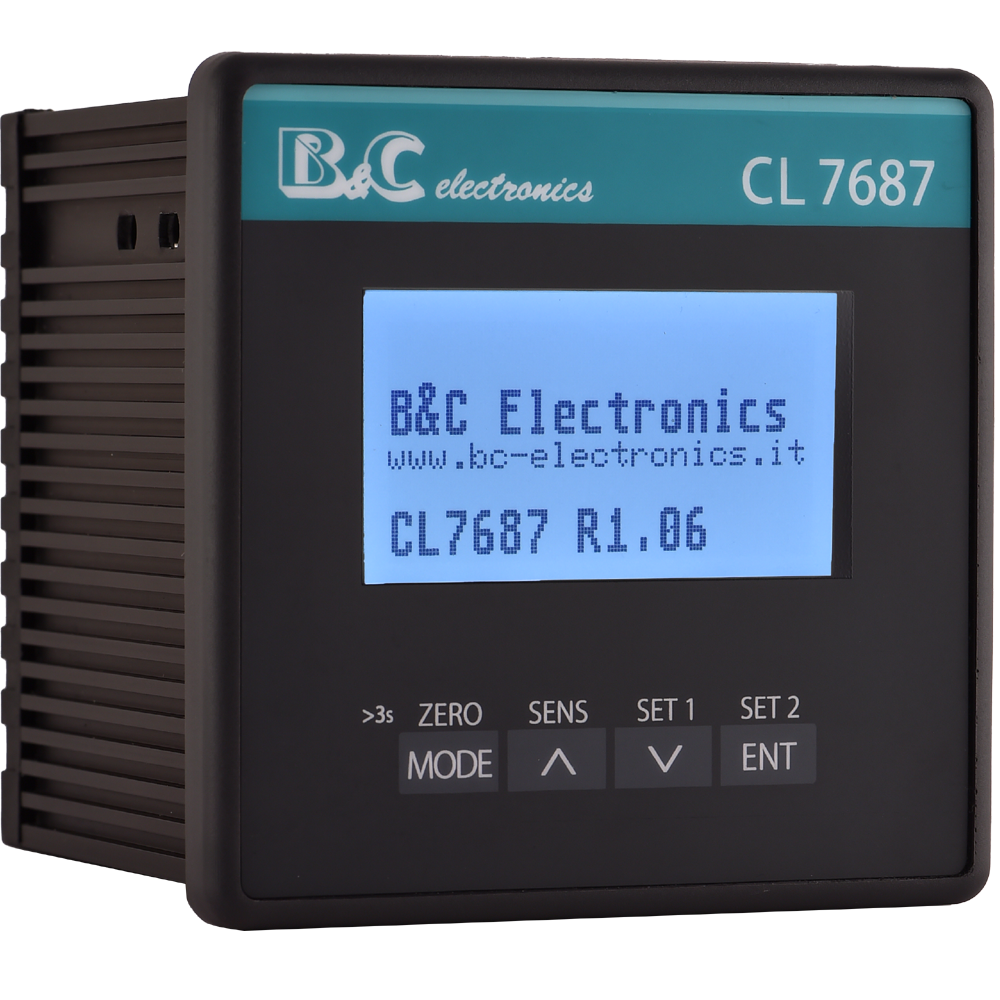

ION Meter CL7687

Chlorination is one of sterilization method in drinking water and industrial water, and chlorine measurement is very important to secure water quality enables the user to measure online residual chlorine with a high level of accuracy and stability in drinking water applications. The analyzer operates on proven Colorimetric DPD Chemistry, which require minimal maintenance with low cost of ownership The instrument enables the user to measure online residual chlorine with a high level of accuracy and stability in drinking water application The instrument uses potentiostatic or polarographic membrane sensors.It is designed for manual and automatic temperature compensation using RTD Pt100 or Pt1000 integrated in the cell or separately external. The instrument also provides temperature measurement. Instrument can automatically adjust the measurement values and provide, as an alternative to PID regulation, 0-20 mA or 4-20 mA measurement outputs programmable on the main measurement and temperature scale. Instrument can activate the alarm if the measurement values are outside the limits or keep the instrument in hold conditions using two external contacts and activate automatic or manual sensor cleaning cycles

Document Files

CatalogueInstruction Manual

Specification

Display: multi-line graph

Inputs:

the three main inputs allow the selection of the following measures

Input A: conductivity/TDS/resistivity/indirect

Input B: ISE/pH/redox
