Online Water Quality Analysers Instruments

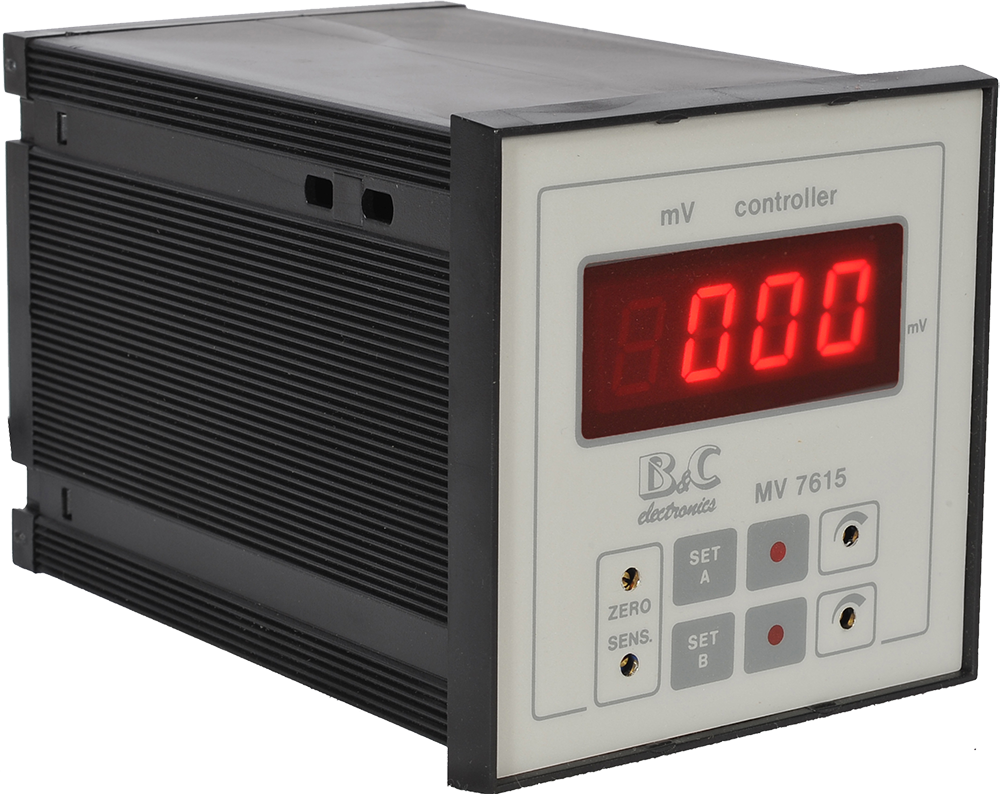

Digital ORP Controller MV7615

These instruments give both a valid, low cost measurement and regulation system for small industrial and ecological plants, and they can be used as 0/20 mA or 4/20 mA visualized transmitters for field applications. Connections are made by means of two extractable terminal blocks on the rear side of the instrument, which allow easy cables connection and easy maintenance of the instrument. The panel mounting instrument's enclosure is designed according to the DIN 43700 standards and it consists of a plastic case with metallic front panel coated with a polycarbonate membrane, to ensure the maximum anticorrosion characteristics. A transparent splashproof front door can be added to the housing, in order to protect the unit from excessive moisture or corrosive fumes. The package is supplied complete with fixing clamps for panel mounting.

Document Files

CatalogueInstruction Manual

Specification

High quality

3 1/2 digit LED display

Automatic temperature compensation

0/20mA 4/20mA adjustable output

2 min/max control relays
