Online Water Quality Analysers Instruments

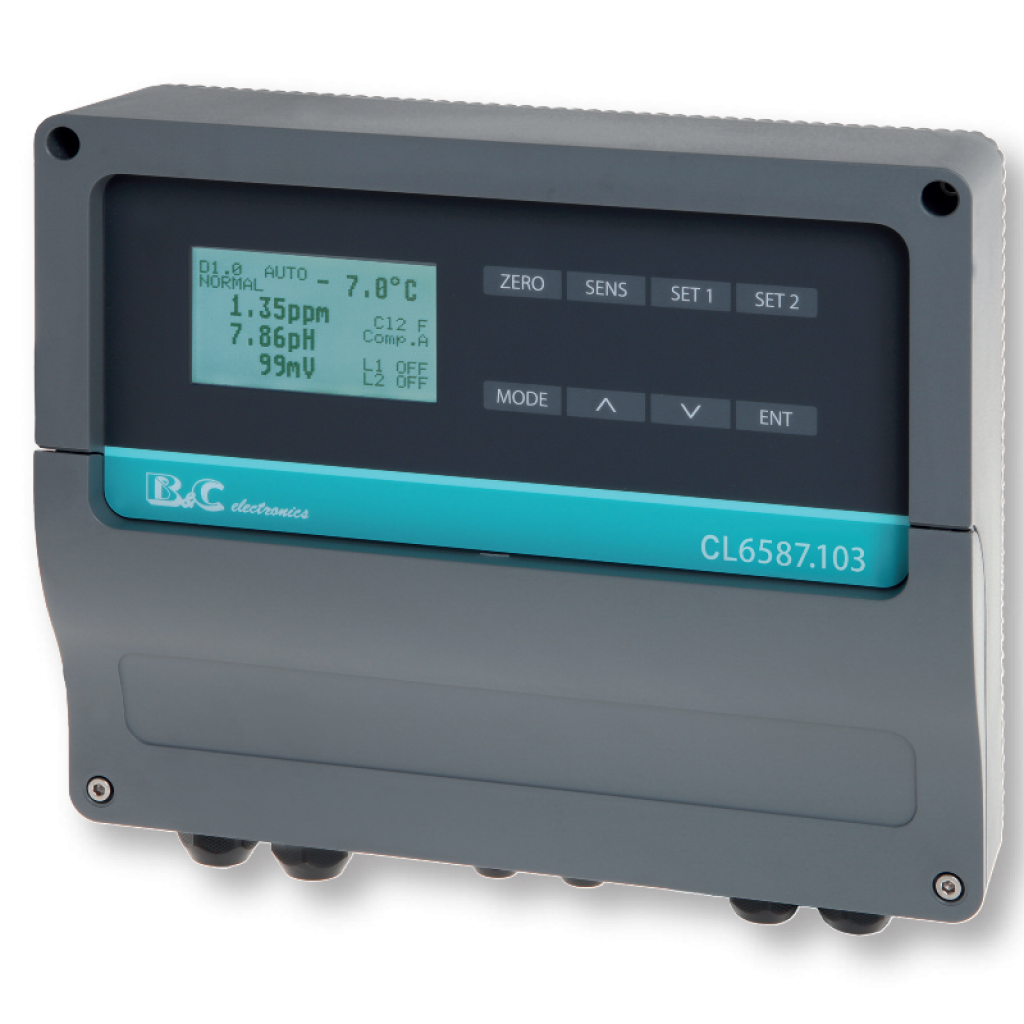

CL6587.103

The possibility of using sensors for the main oxidizing substances, such as free, combined, and total residual chlorine, dissolved ozone and chlorine dioxide, residual hydrogen peroxide and peracetic acid, makes it suitable for many applications and types of systems. The device can perform the following functions: - view the measurements of oxidants, pH, redox and temperature; - automatically adjust the oxidant, pH and redox values; - provide, as an alternative to PID regulation, 0-20 mA or 4-20 mA measurement outputs programmable on the main measurement and temperature scale; - provide an RS485 and Modbus digital output (function 03); - activate the alarm for measurement values outside the limits, excessive permanence of the set points and closure of the logic inputs; - activate the alarm or keep the instrument in hold conditions using two external contacts; - activate automatic or manual sensor cleaning cycles.

Document Files

Catalogue

Specification

Display: multi-line graph

Entrances:

potentiostatic or polarographic sensors (2 or 3 wires)

glass or antimony pH electrode

redox electrode
