Online Water Quality Analysers Instruments

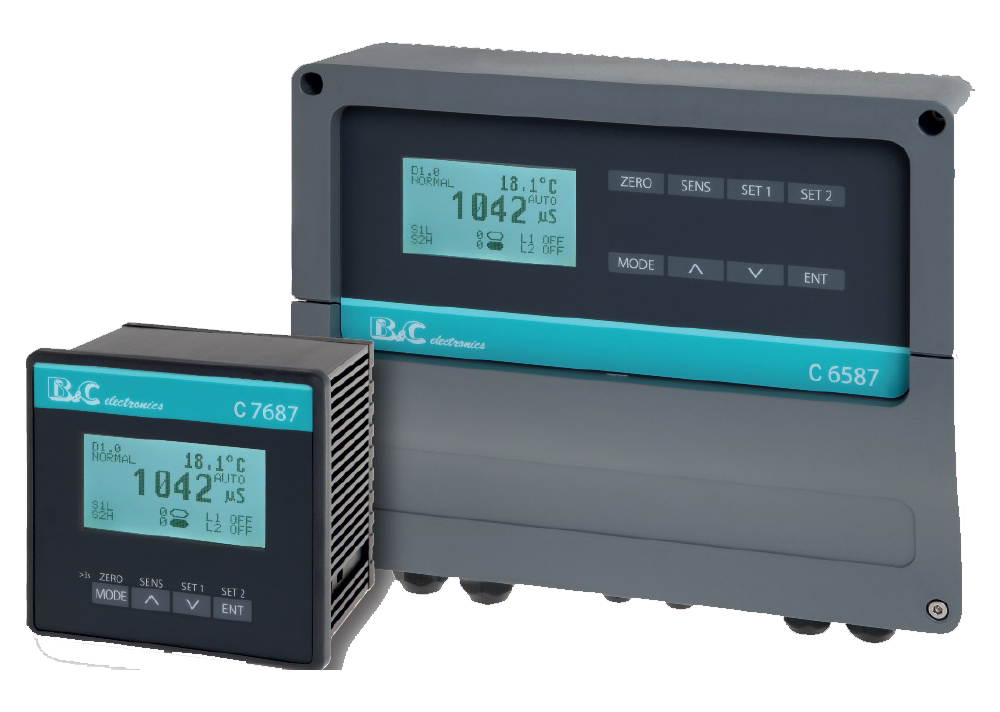

Chlorine Analyser CL6587

The instrument uses potentiostatic or polarographic membrane sensors.It is designed for manual and automatic temperature compensation using RTD Pt100 or Pt1000 integrated in the cell or separately external. The instrument also provides temperature measurement. The device can perform the following functions: - view the measurement; - automatically adjust the measurement values; - provide, as an alternative to PID regulation, 0-20 mA or 4-20 mA measurement outputs programmable on the main measurement and temperature scale; - activate the alarm if the measurement values are outside the limits; - activate the alarm or keep the instrument in hold conditions using two external contacts; - activate automatic or manual sensor cleaning cycles.

Document Files

Catalogue

Specification

Display: multi-line graph

Inputs: potentiostatic or polarographic sensors (2 or 3 wires)

2 logical inputs for hold / alarm function

Selectable scales in ppm - mg/l

Scales: 200.0 ppb - µg/l / 2.000 / 20.00 / 200.0 / 2000 ppm - mg/l
