Analytical Instruments

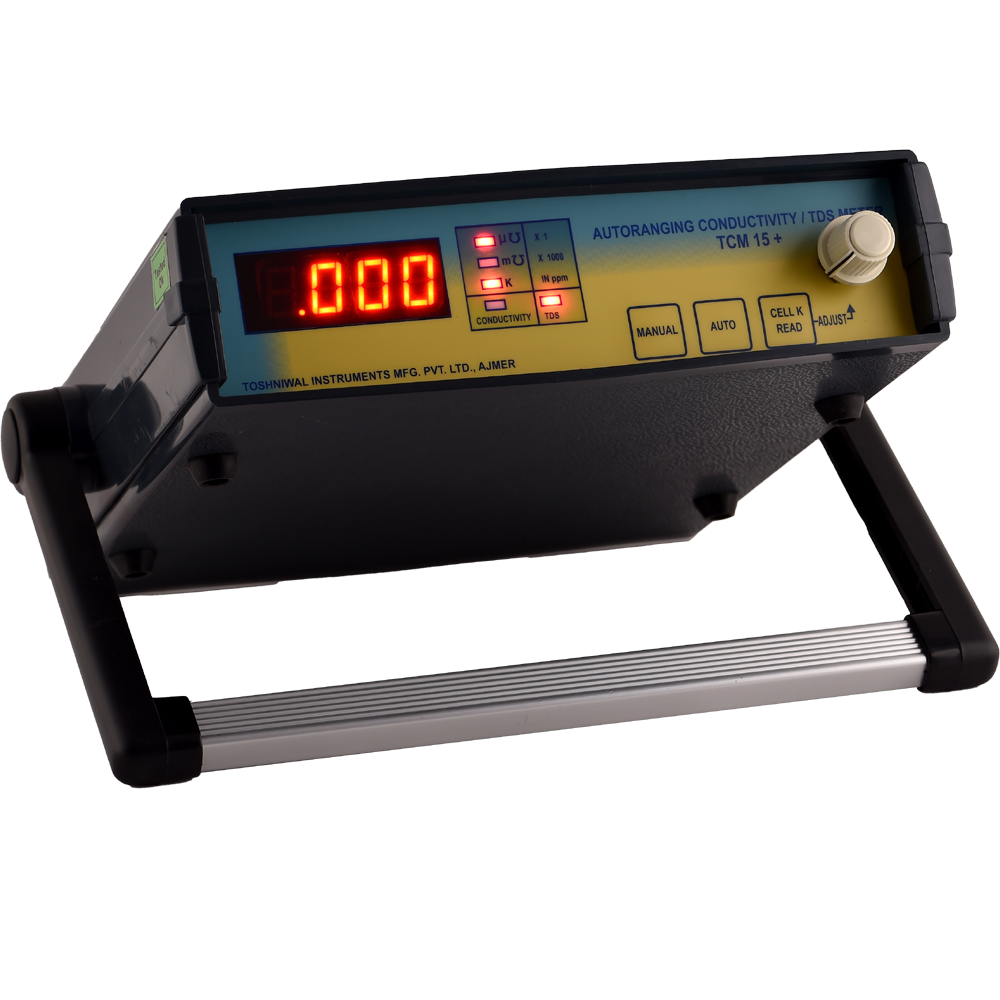

TCM 15+

TCM 15 is a digital conductivity meter, designed to measure Conductivity & TDS. The Auto Ranging Digital Conductivity / TDS Meter is designed to eliminate operational difficulties in conductivity measurements. The solid state circuitry provides auto selection of ranges in seven steps and digital display of measured conductivity & cell constant. The novel feature of cell constant adjustment upto 3½ (0-2) digits eliminates possibility of any error due to incorrect cell constant compensation. The capacitive & polarization effects are minimized by automatic selection of 200 Hz or 3 KHz frequency. Output for 0-2V recorder is available.

Document Files

CatalogueInstruction Manual

Specification

Inbuilt TDS measurement.

Variable cell constant (It can be adjustable between 0.001 to 1.999).

Direct display of conductivity.

Selectable temperature co-efficient.

Manual/ Automatic Temp. compensation (0 - 100°C).
