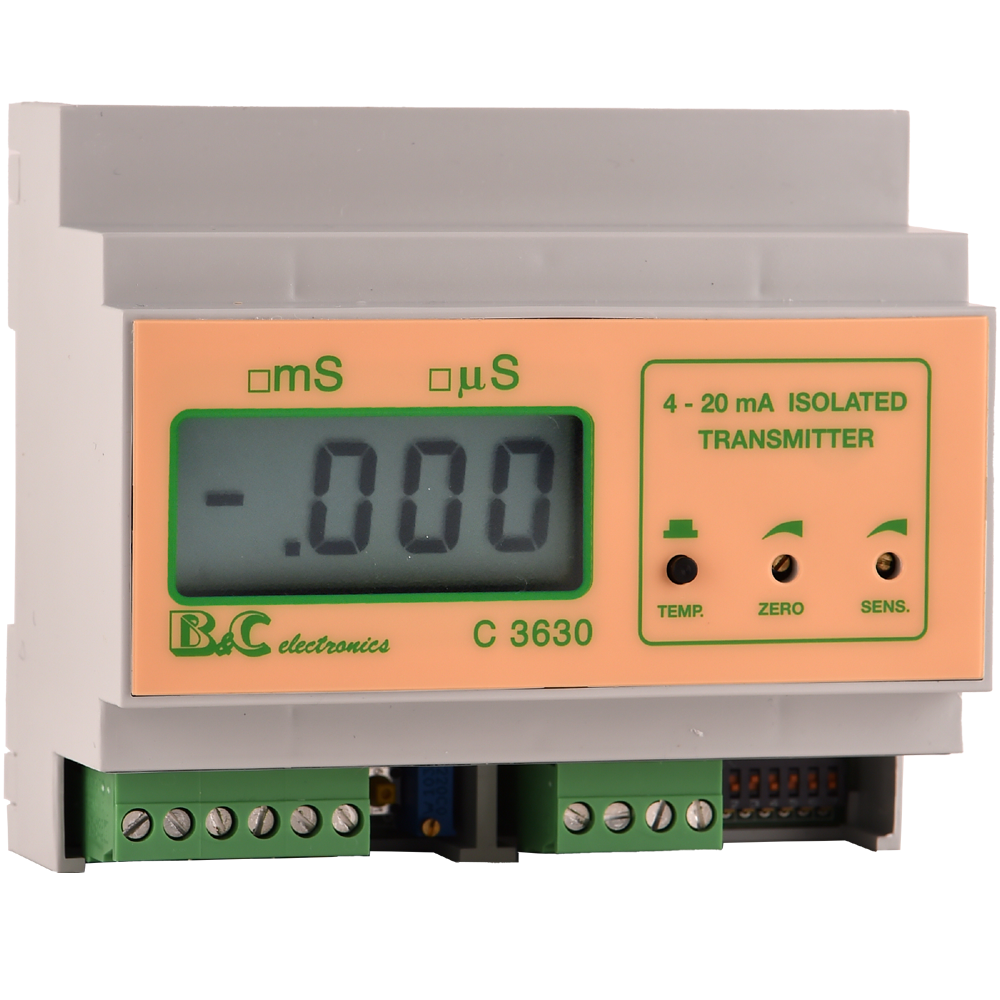

Digital Conductivity Transmitter C3630

Transmitter powered by a voltage between 10 and 30 Vdc provides an isolated 4-20 mA "current loop" analog output. The instrument uses 2 or 4 electrode conductivity cells with K = 1.00 and Pt100 RTD temperature sensors.Transmitter provide accurate, low costmeasuring andcontrol for industrial process, water treatment and wastewaterapplications. Its modularity, small size and the technology used make it suitable for measuring electrical conductivity in various process applications.

Document Files

CatalogueInstruction Manual

Specification

Conductivity scales: 0 / 199.9 - 0 / 1999 µS - 0 / 19.99 mS

Temperature range: -10.0 to 120.0 °C

Analog output: 4-20 mA isolated, two-wire "current loop".

Power supply: 10 to 30 Vdc

Dimensions: 105x95x58 mm.
