Laboratory & Industrial Electrodes / Sensors

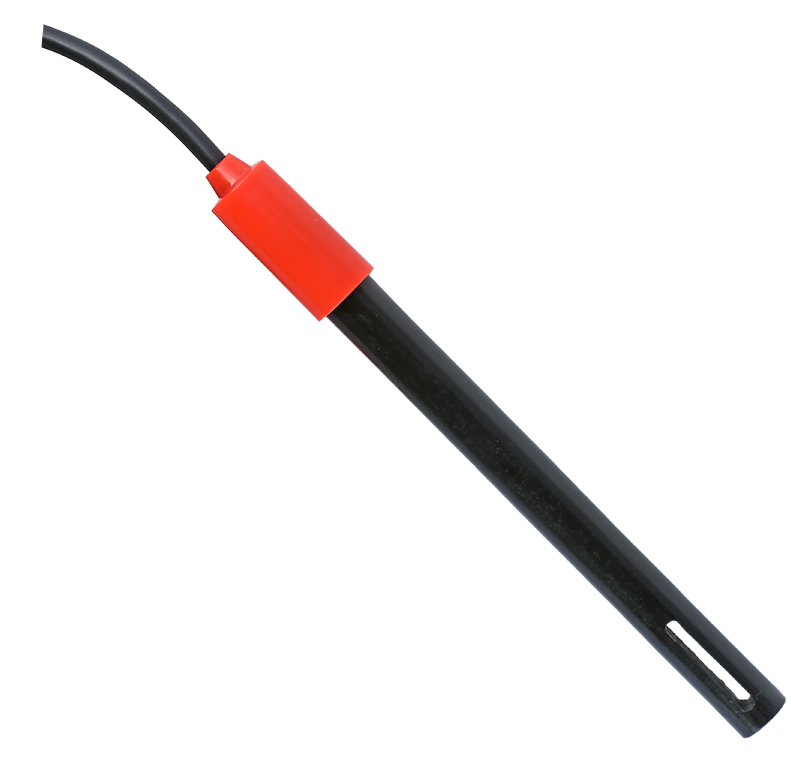

Plastic Body Conductivity Cell Model TCP-01

These Plastic-body, Conductivity electrode/cell is designed to conductivity testing application for laboratory and field use. Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements. Each type of conductivity cell has two models with k= 0.1 cm-1 and k=1.0 cm-1 cell constants. When selecting a conductivity cell, check the expected conductivity of the sample and then look at the cell constants of conductivity cells. Choose a conductivity cell that covers the expected sample conductivity. The higher the conductivity value of sample, the higher the cell constant required. A conductivity cell with k=1.0 cm-1 cell constant is the most commonly used because it measures low to high conductivity.

Document Files

Catalogue

Specification

Conductivity Cell covers wide range uS to mS.

Stable & quick response.

Intended for laboratory and field use.

Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements.

Typically, a low conductivity solution is measured with a low cell having a k=0.1 cm-1 cell constant to prevent absorption of carbon dioxide (CO2) from air, which can affect the conductivity value.
